FS-32 Roterende toppforsegler med fyller.

KAPASITET 2.400 PR. TIME

FS-32 Roterende toppforsegler med fyller.


Art Nr.: FS-32 Dosimaq

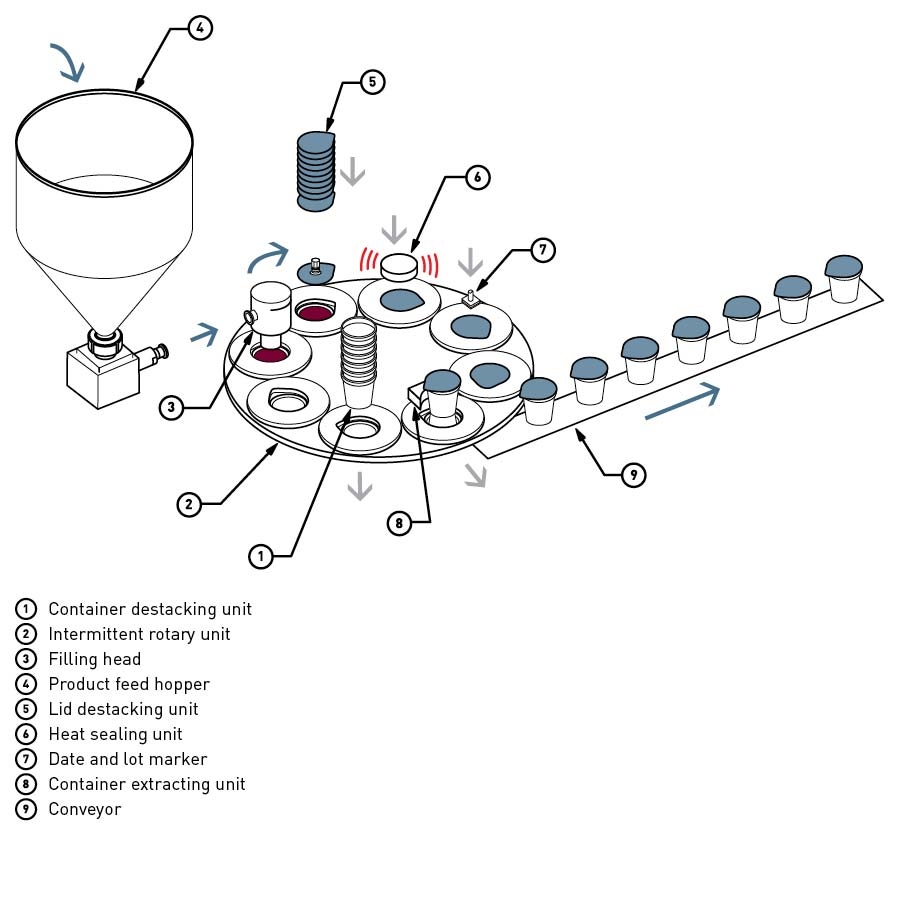

EQUIPMENT

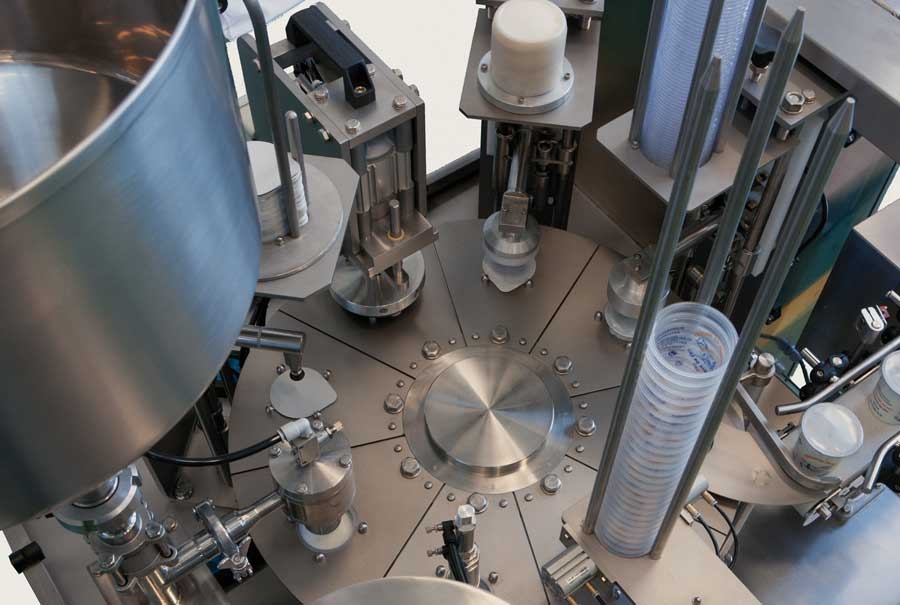

  • Intermittent rotary unit with 8 stations for container movement.

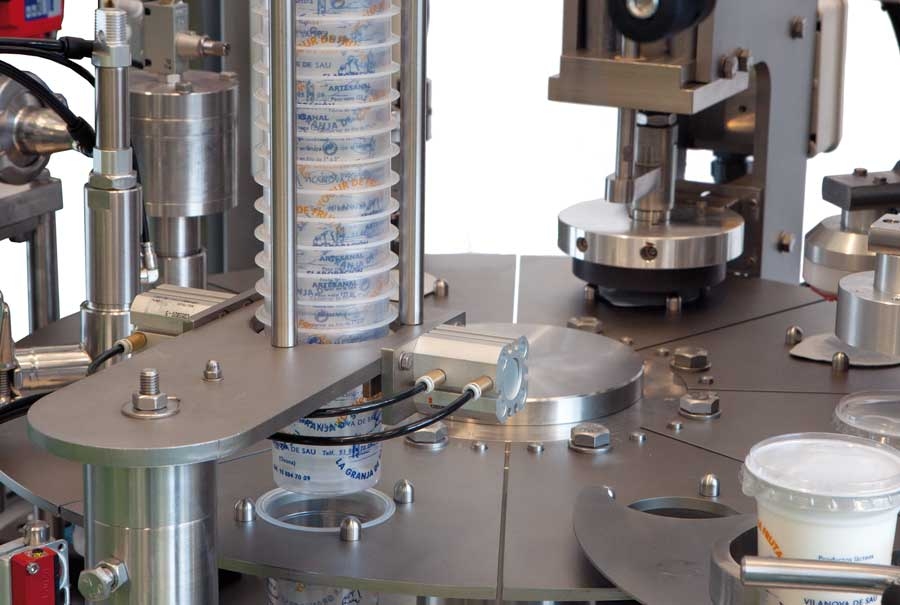

  • Destacking system for rigid, upstacking containers.
  • Filling head for liquid, viscous, solid or powder products.
  • Lift system for containers to allow filling from the bottom of the container.
  • Product feed hopper.
  • Anti-drip nozzles.
  • Destacking system for pre-cut aluminium lids.

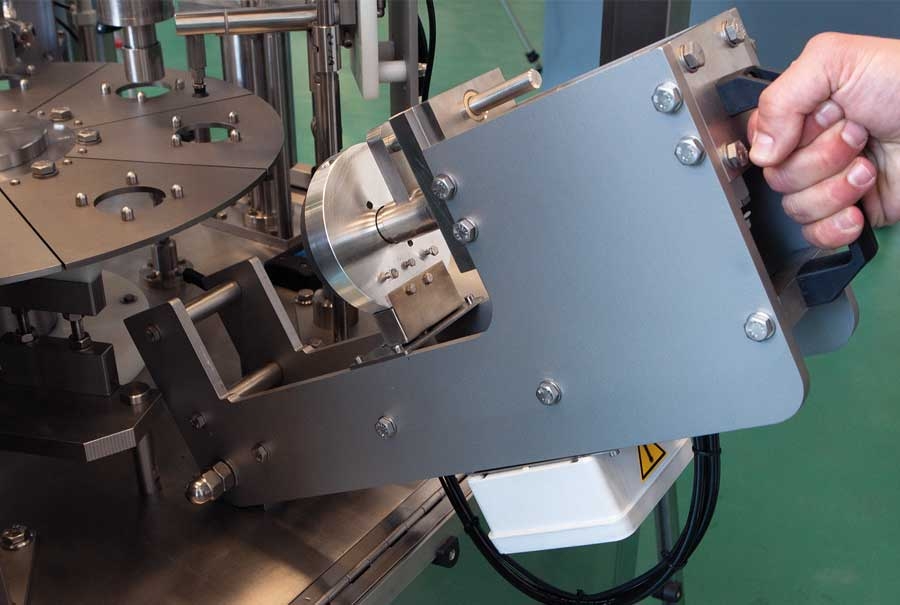

  • Heat sealing system for container and lid, manually collapsible.
  • Extraction system of the container from the rotary unit.
  • Powered conveyor for extracting the container from inside the machine.

TECHNICAL FEATURES

  • Height 2.000 mm
  • Width 1.000 mm
  • Length 1.200 mm
  • Weight 550 kg
  • Power supply Three-phase 380V + neutral
  • Pneumatic supply 6 bar
  • Capacity Up to 2.400 containers
