FS-32 8/3 Roterende toppforsegler med fyller.

KAPASITET 6.000 PR. TIME

FS-32 8/3 Roterende toppforsegler med fyller.


Art Nr.: FS-32 8/3 Dosimaq

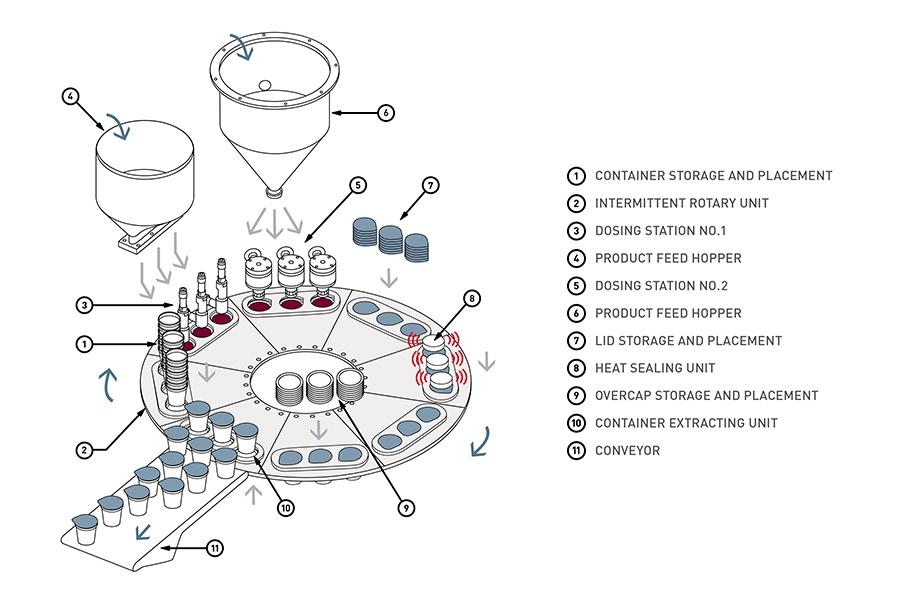

EQUIPMENT

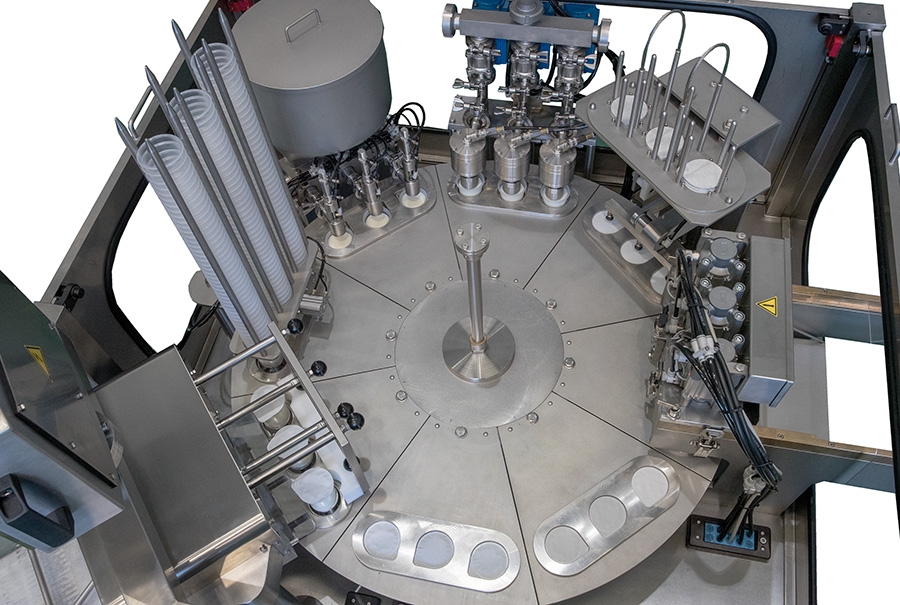

  • Intermittent rotary unit with 8 stations for container movement.
  • Destacking system for rigid, stackable containers.

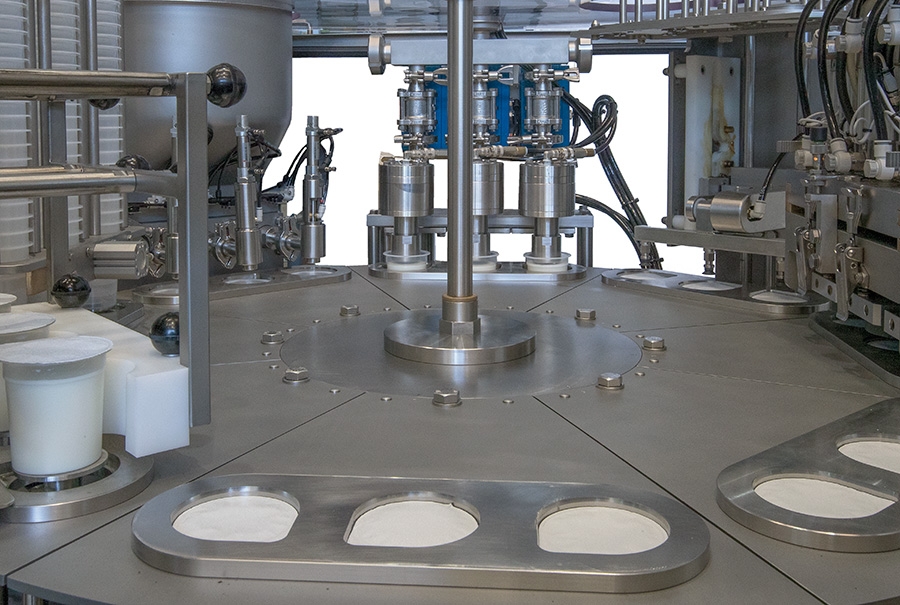

  • Dosing head for liquid, viscous, solid or powder products.
  • Lift system for containers to allow filling from the bottom of the container.
  • Hopper for feeding product.
  • Anti-dripping nozzle.
  • Destacking system for pre-cut aluminium lids.
  • Heat sealing removable system for container and lid, for easy cleaning and maintenance.

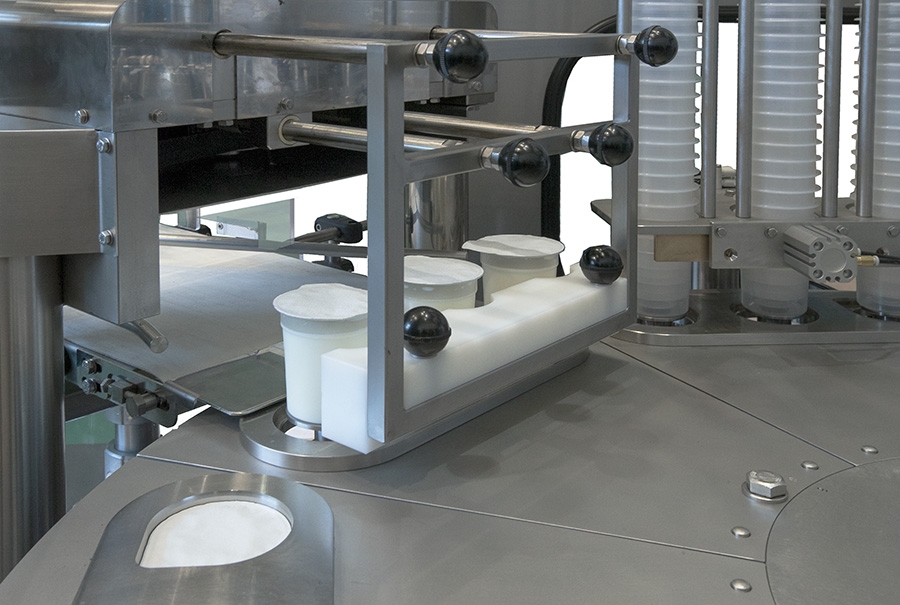

  • System for extracting the container from the rotary unit.
  • Powered conveyor for extracting the container from inside the machine.

TECHNICAL FEATURES

  • Height 2.000 mm
  • Width 1.400 mm
  • Length 1.600 mm
  • Weight 1.200 mm
  • Power supply 380V 50 Hz
  • Pneumatic supply 6 bar
  • Capacity Up to 6.000 containers
