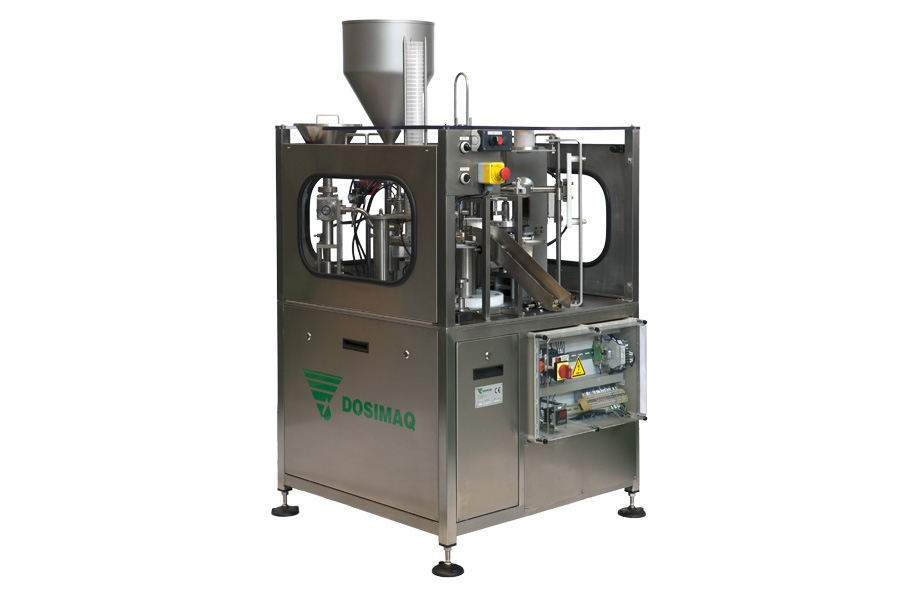

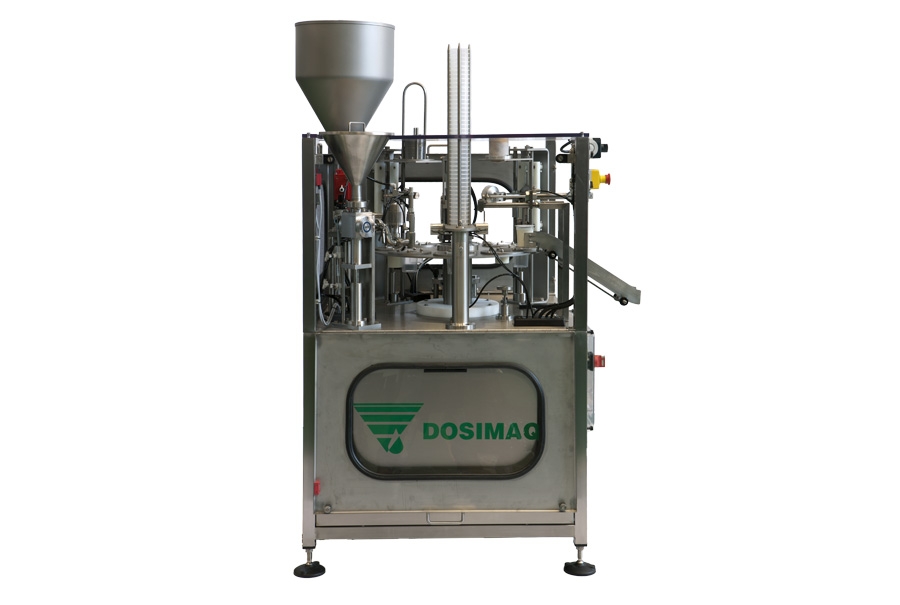

FS-28 Roterende toppforsegler med fyller.
KAPASITET 1.800 PR. TIME
Art Nr.: FS-28 Dosimaq

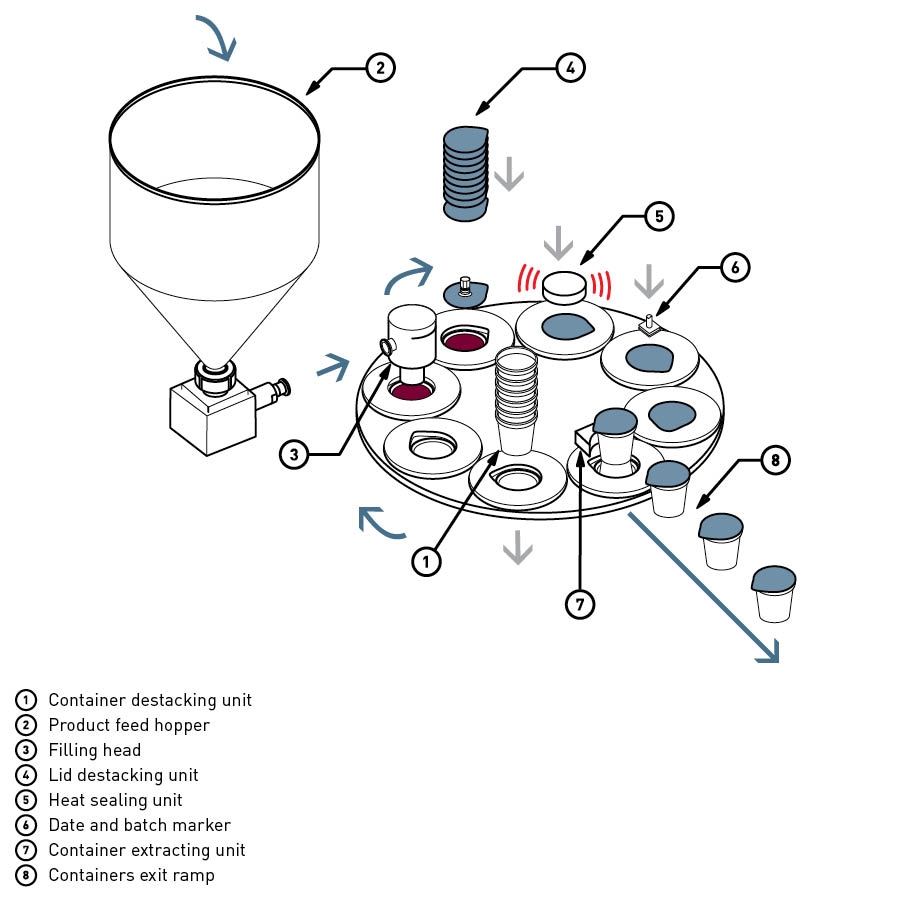

EQUIPMENT

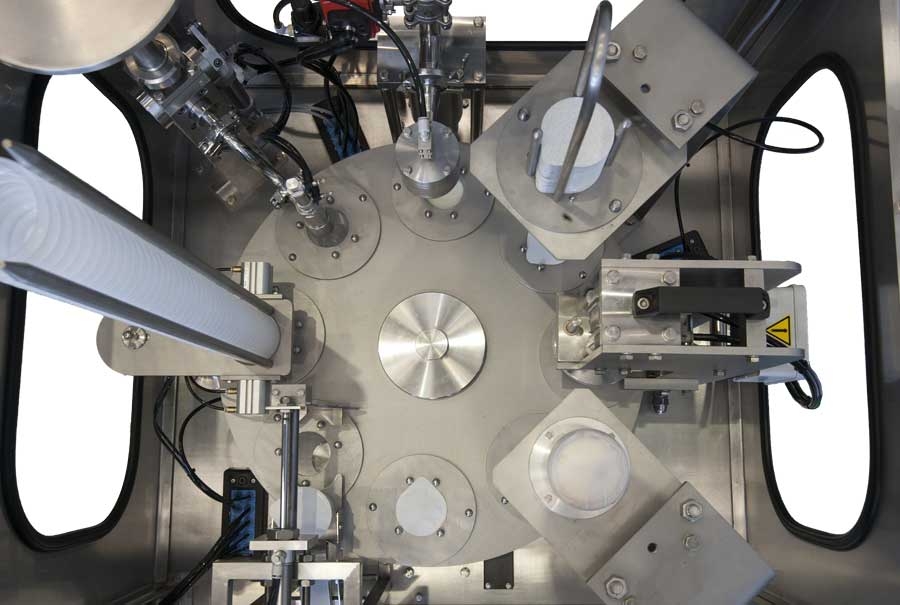

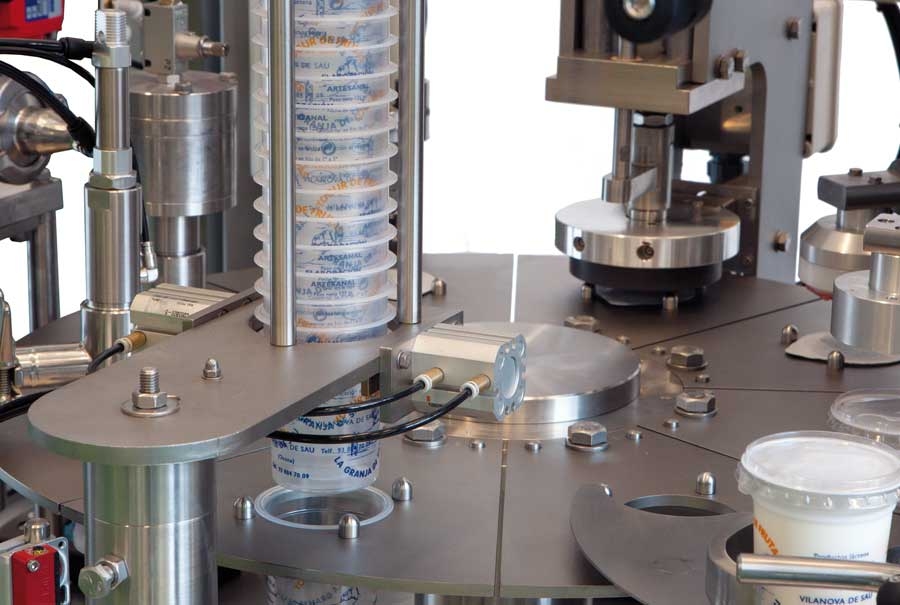

- Intermittent rotary unit with 8 stations for container movement.
- Destacking system for rigid, upstacking containers.
- Filling head for liquid, viscous, solid or powder products.
- Hopper for product feeding. . Anti-dripping nozzle.
- Destacking system for pre-cut aluminium lids.
- Heat seal system for container and lid, manually pulled down.
- Pulling out system of the container from the rotary unit.
- Ramp for the exit of the container from inside the machine.
OPTIONAL EQUIPMENT
- Filling head for liquid or viscous products, for filling products with two different flavours in the same container.
- Marker ink pad for expiration and batch.
- Positioning system for reclosable overcap.
- Automatic system for feeding the hopper.
- Automatic C.I.P. cleaning system.
- Format kit for conditioning of different containers with rapid format change (10 minutes).
- Laminar flow cabinet.
TECHNICAL FEATURES
- Height 1.800 mm
- Width 1.100 mm
- Length 950 mm
- Weight 450 kg
- Power supply Three-phase 380V + neutral
- Peumatic supply 6 bar
- Capacity Up to 1.800 containers
