Bellift 275 pumpe

5-275 ml 5-670 ml 5-1340 ml

Bellift 275 pumpe

Art Nr.: Bellift 275

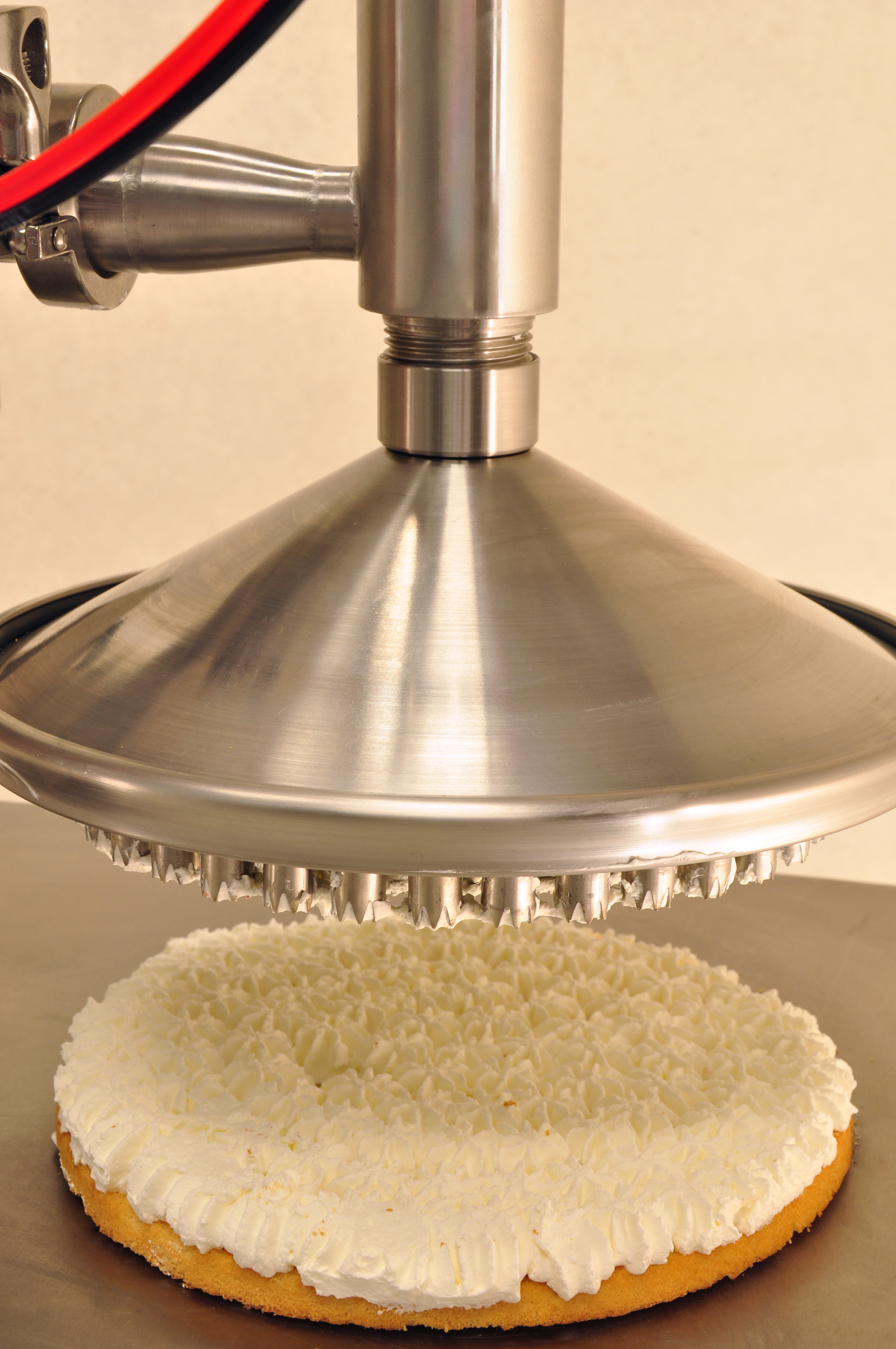

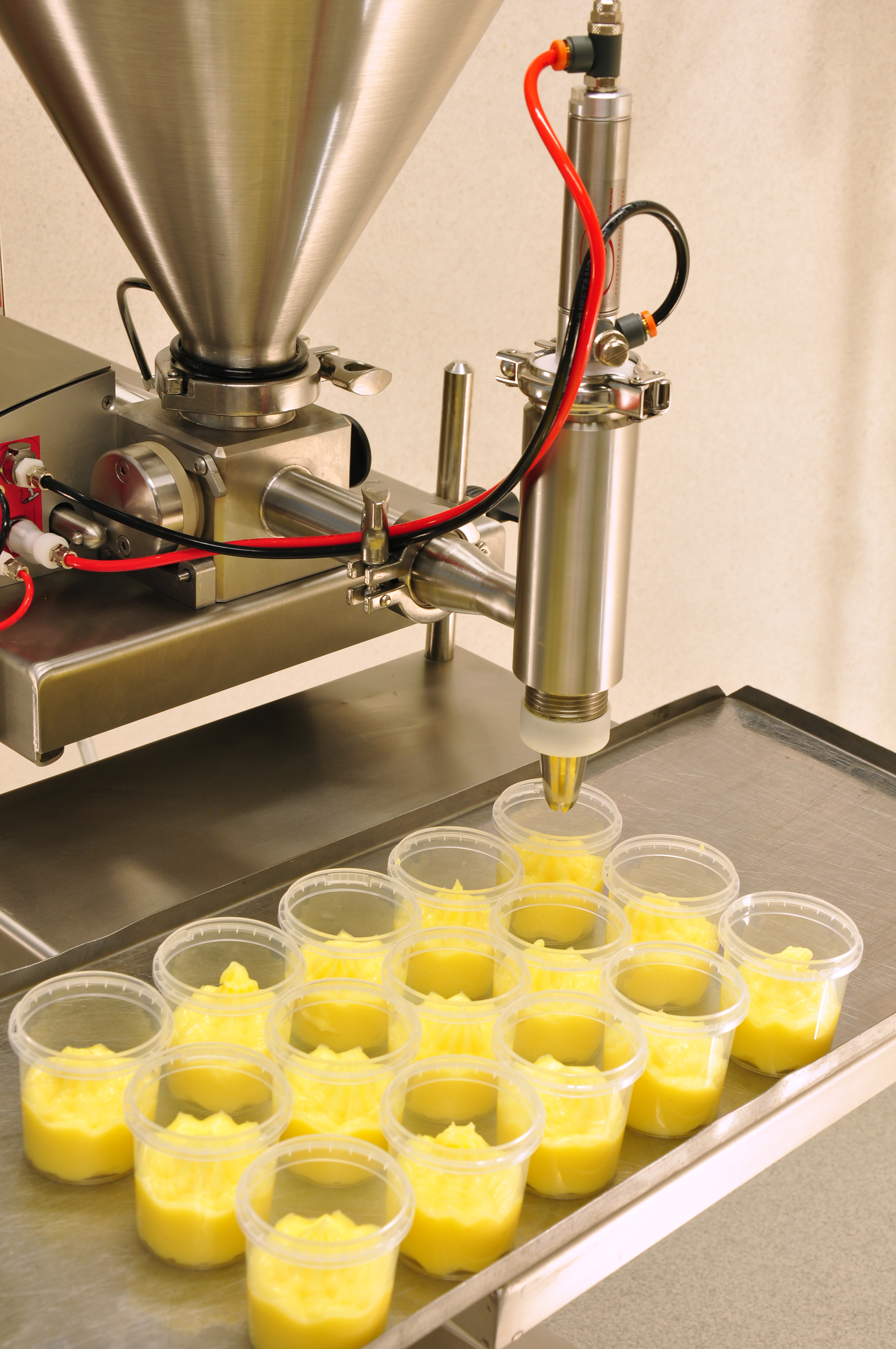

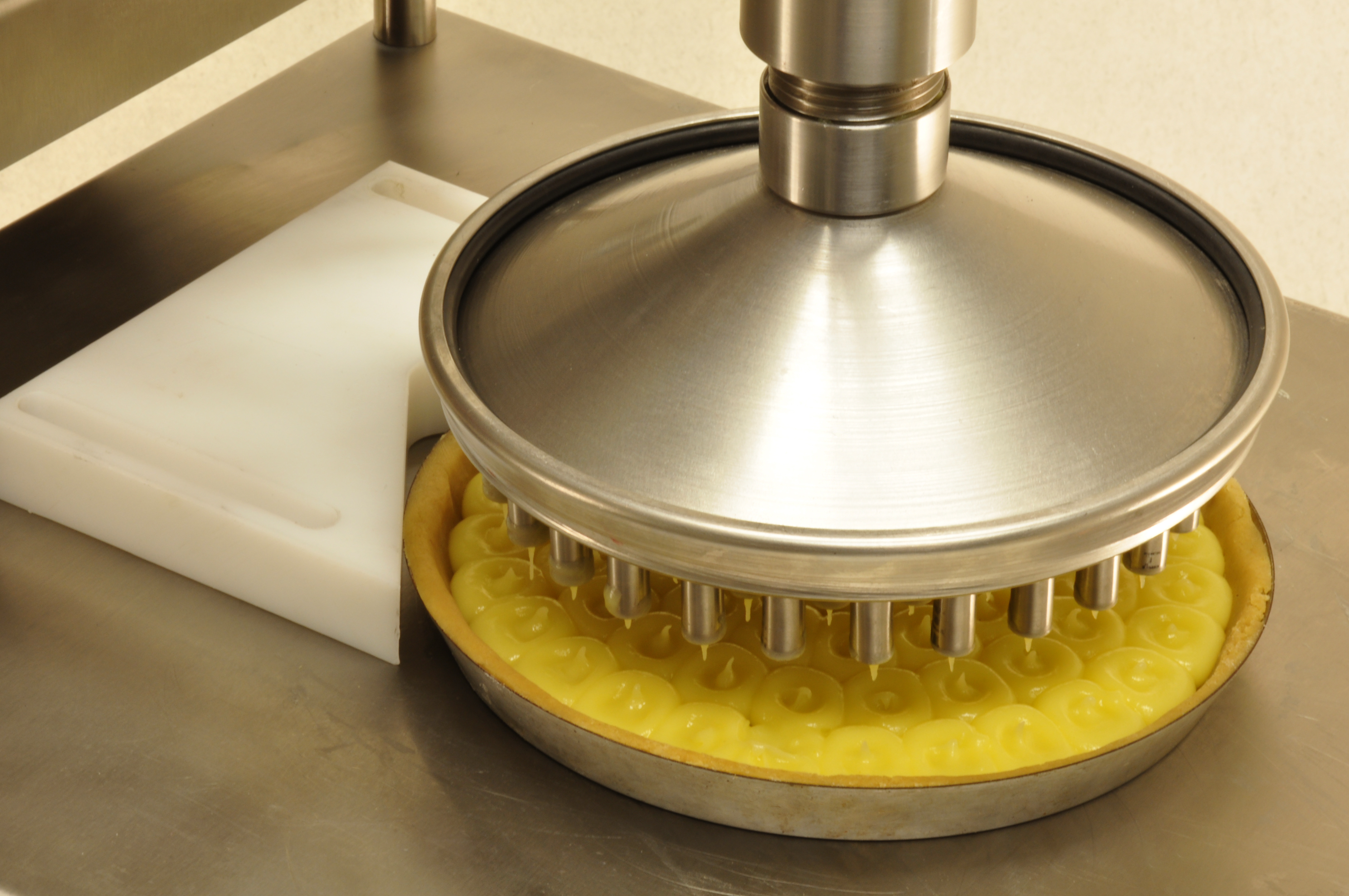

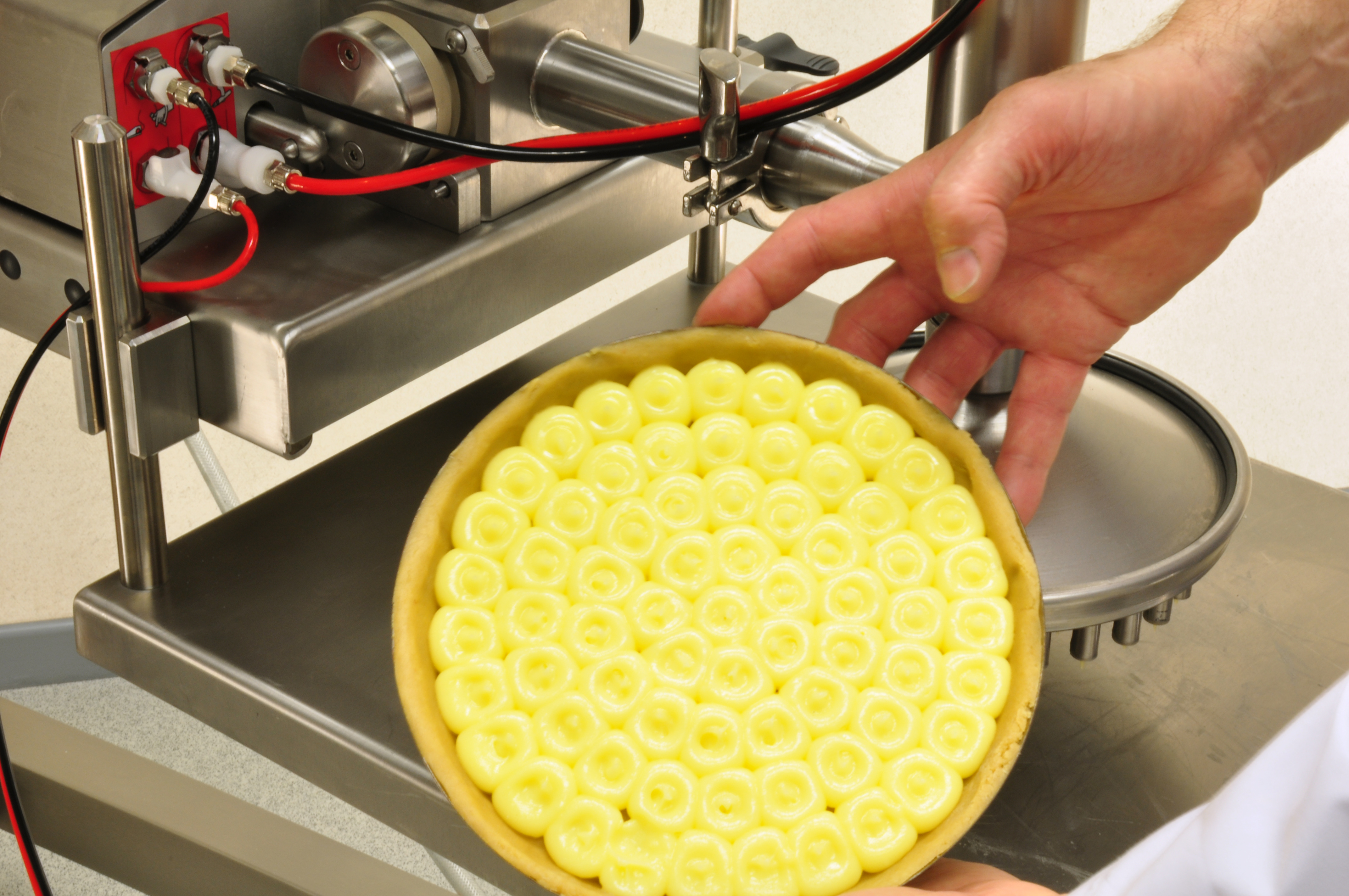

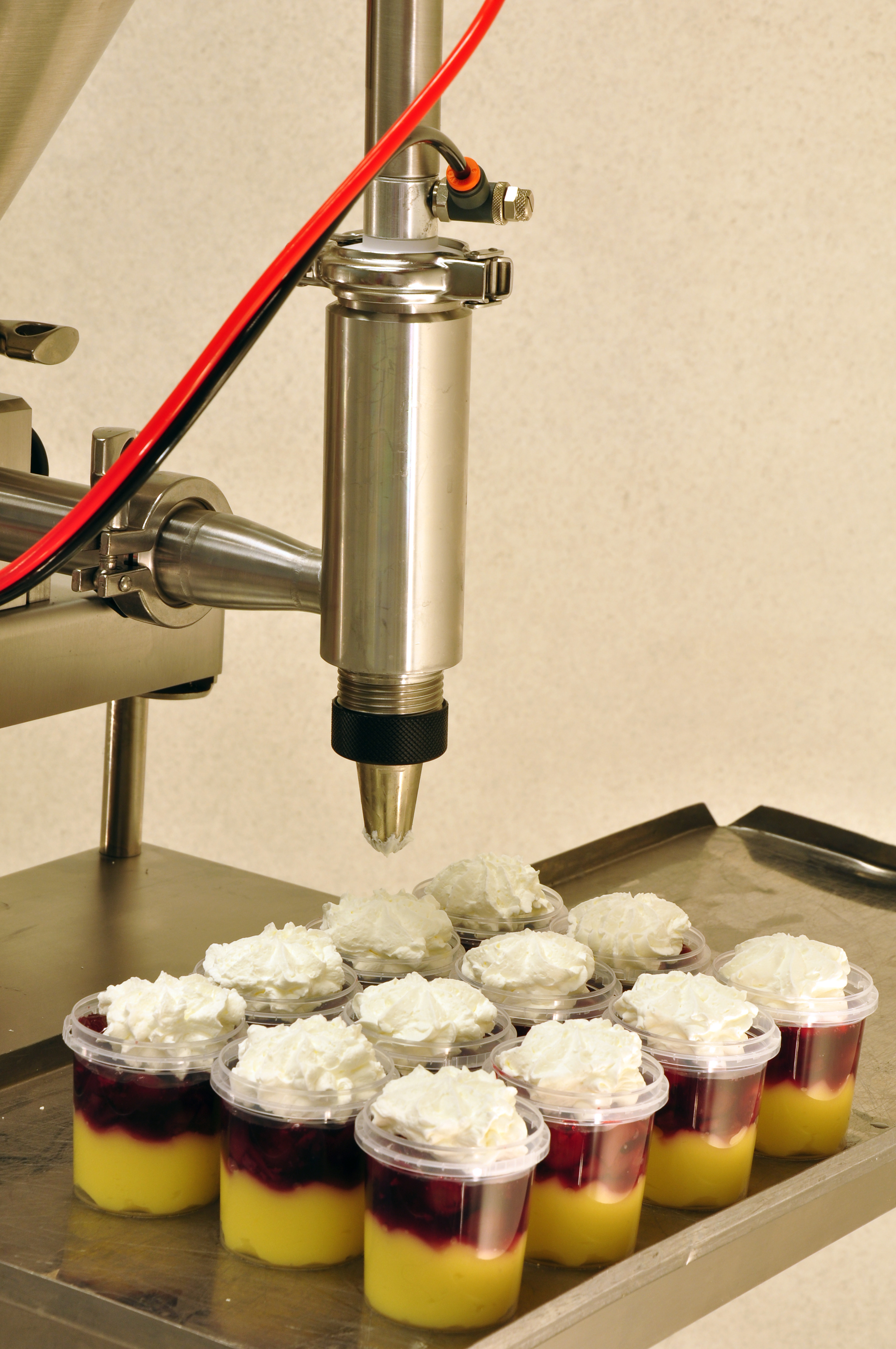

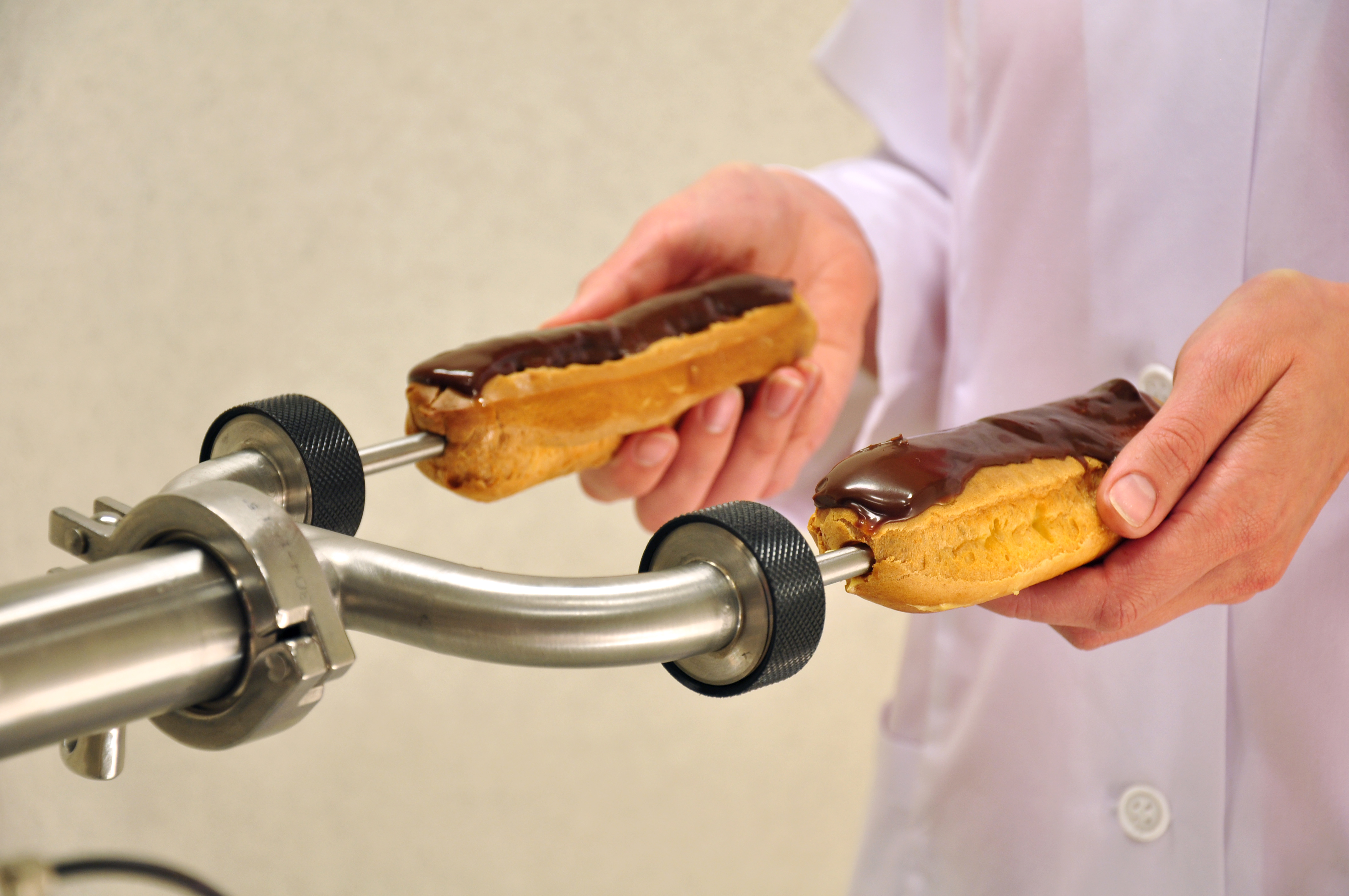

Beldos offers a range of versatile volumetric stainless steel depositors with optional attachments for depositing, injection, layering and decoration. Beldos depositors will replace your pastry bag, spoon or a measuring cup and will become the most reliable, easy-to-use and intelligent equipment at your production!

1. The Bellift depositor is available in three series:
  • 275 – 5-275 ml per deposit;
  • 670 – 5-670 ml per deposit;
  • 1340 - 5-1340 ml per deposit;

2. Design features:

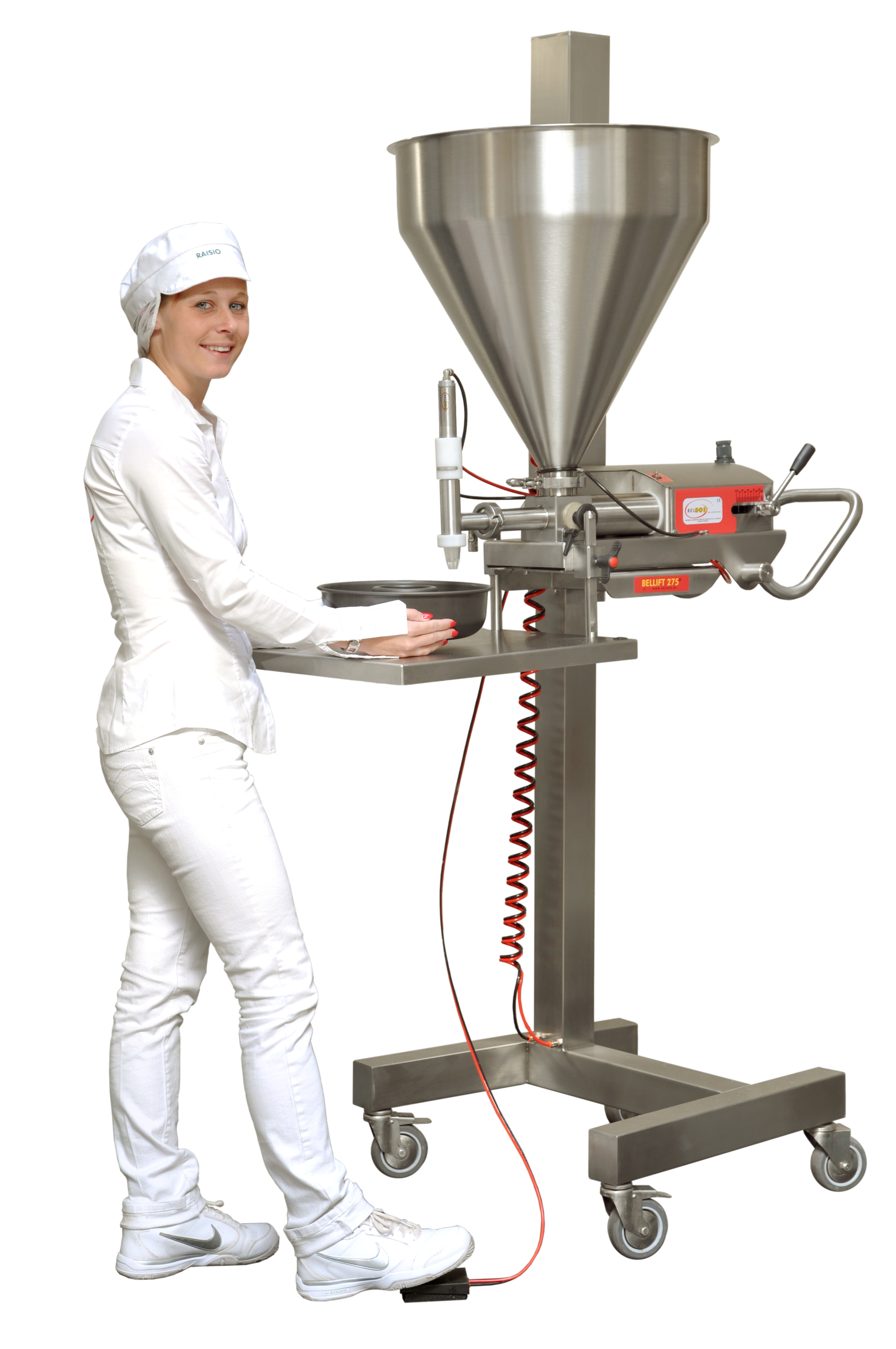

  • mounted on a mobile frame pneumatically adjustable in height for small or tall persons for the most convenient operation and to avoid back pain; hopper can be easily filled and cleaned in the lowest position;
  • a removable table can be adjusted in height depending on the production needs;
  • 60 l hopper;
  • the depositing volume is indicated on a scale from 10% till 100% depending on the product cylinder volume;
  • the speed of depositing can be easily adjustable;
  • foot pedal operation or handgun operation; press the foot pedal or the trigger of the handgun once for single portion control or hold for multiple deposits;

3. Technical specifications
  • Depositing speed: Up to 120 deposits/min
  • Power: Air: 29 l/min at 30 deposits/min 7 Bar / 102 PSI
  • Depositing volume: 5-275 cm3
  • Material: Stainless steel
